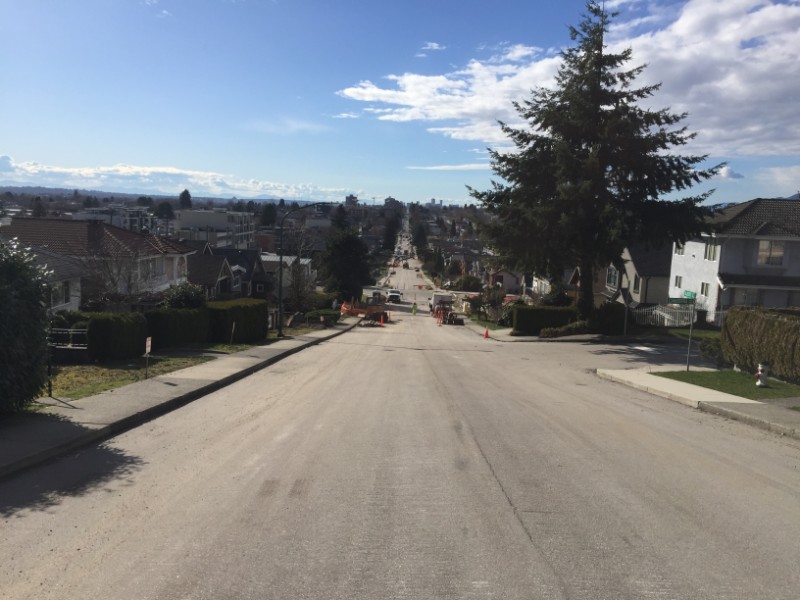

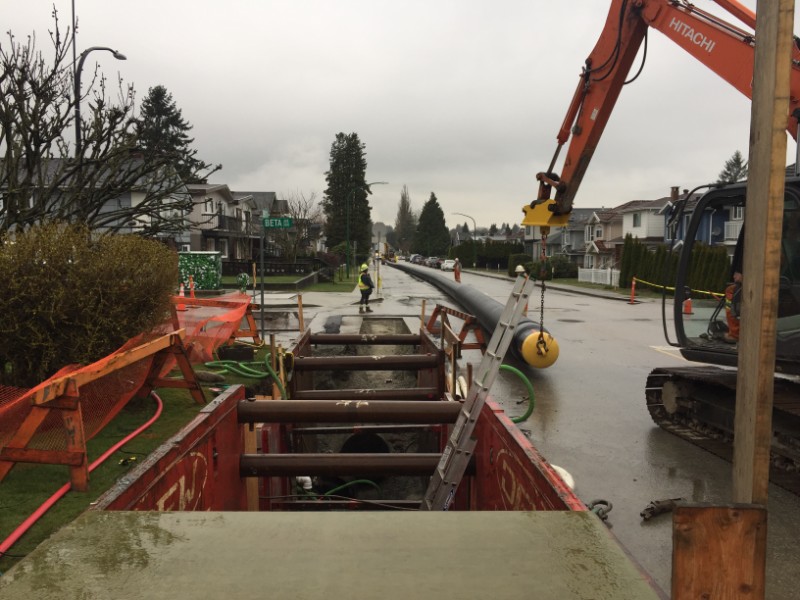

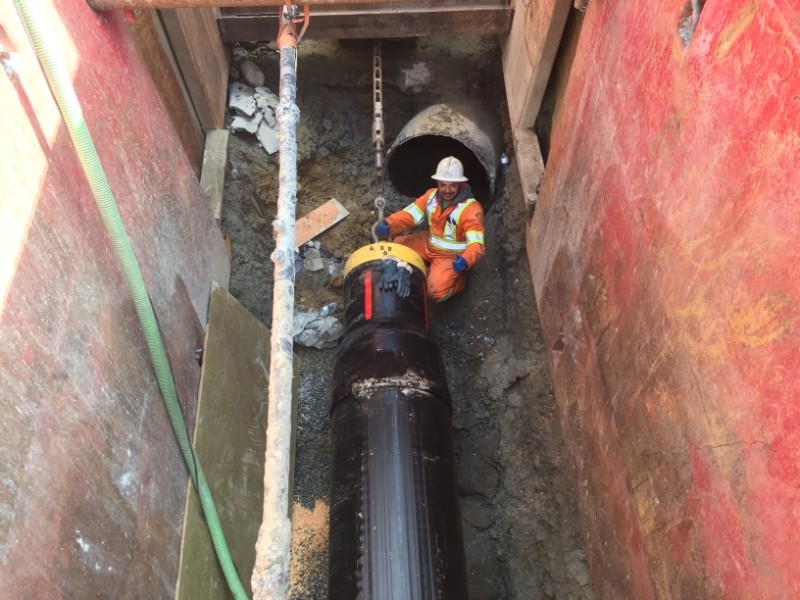

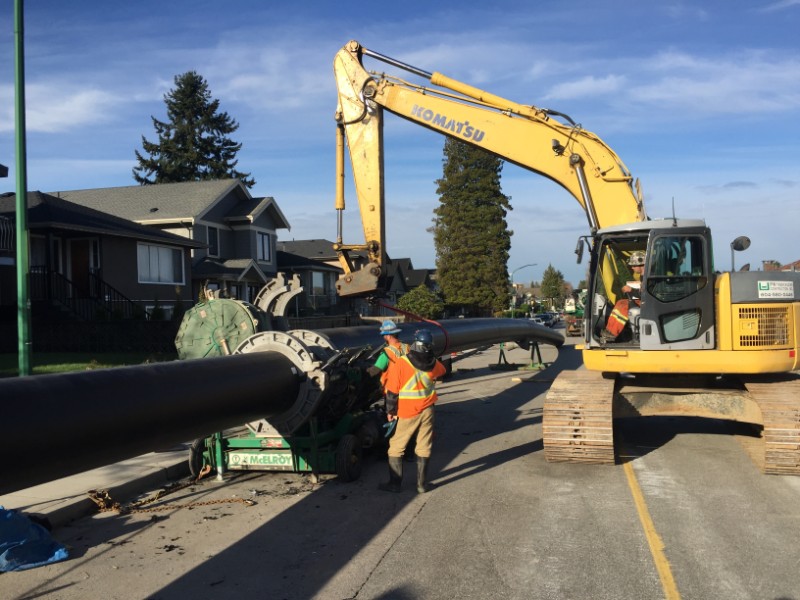

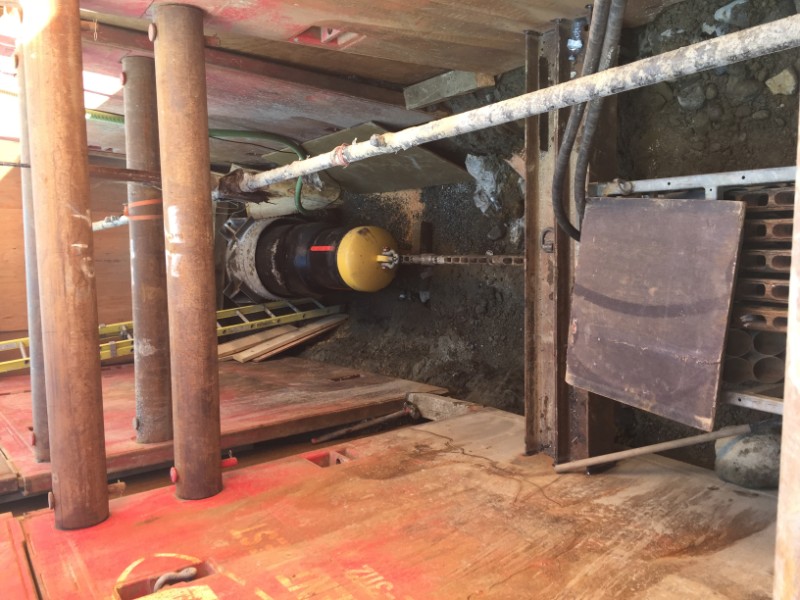

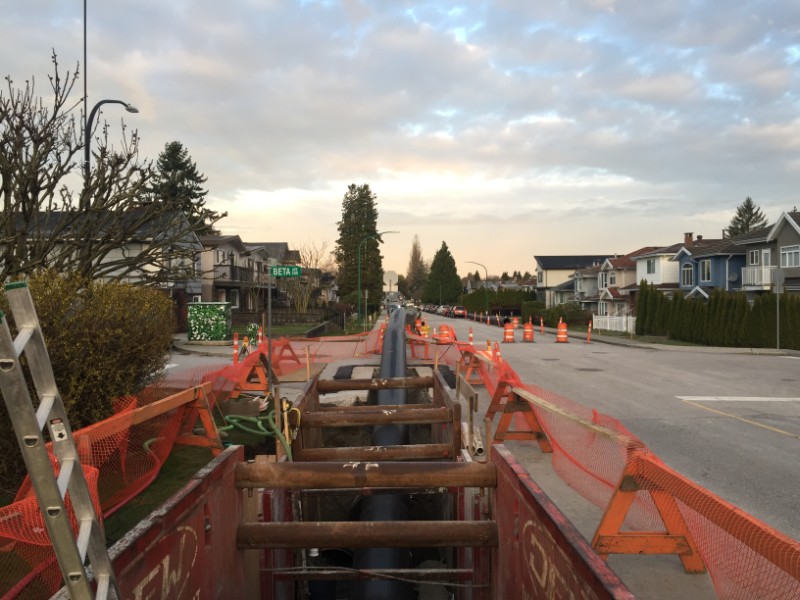

The scope of work encompassed the rehabilitation of approximately 380m of 36″ (914mm) diameter steel water pipeline for the Douglas Rd. Main No. 1 section, from Delta Ave. to Beta Ave. in Burnaby BC. The selected method of rehabilitation was Slip Lining with 30″ (762mm) diameter High Density Polyethylene (HDPE) DR9 pipe with grouting of the annular space between host and carrier pipe. A thick walled pipe (DR9) was necessary to handle the high operating pressure of the GVWD watermain. Residents were afforded the ability to utilize the front entrances to their properties at all times during construction and retain the use of street parking where deemed necessary, highlighting one of the major benefits of trenchless construction – A Less Invasive Process Compared to Traditional Methods.
