Sliplining

Sliplining has been used for over 70 years, and effectively, it is placing a new pipe inside and existing pipe. This technology is one of the methodologies that PW Trenchless specializes in. In fact, PWT was the first contractor in BC to use this type of pipe in the repair of a 100 year old sewer which runs through a Victoria graveyard.

Many types of pipe are suitable for use internally, but HDPE (high-density polyethylene) is the most common. Sliplining also uses PVC and FRP (fiberglass-reinforced pipe) and once the new Carrier pipe is installed within the Host pipe, concrete is pumped in to fill the void and provide structural rigidity and strength. The finished pipe restores structural integrity and stops infiltration. The new pipe is smaller in diameter than the previous Host pipe and this may prove unsuitable for some applications where increased flows have occurred over time.

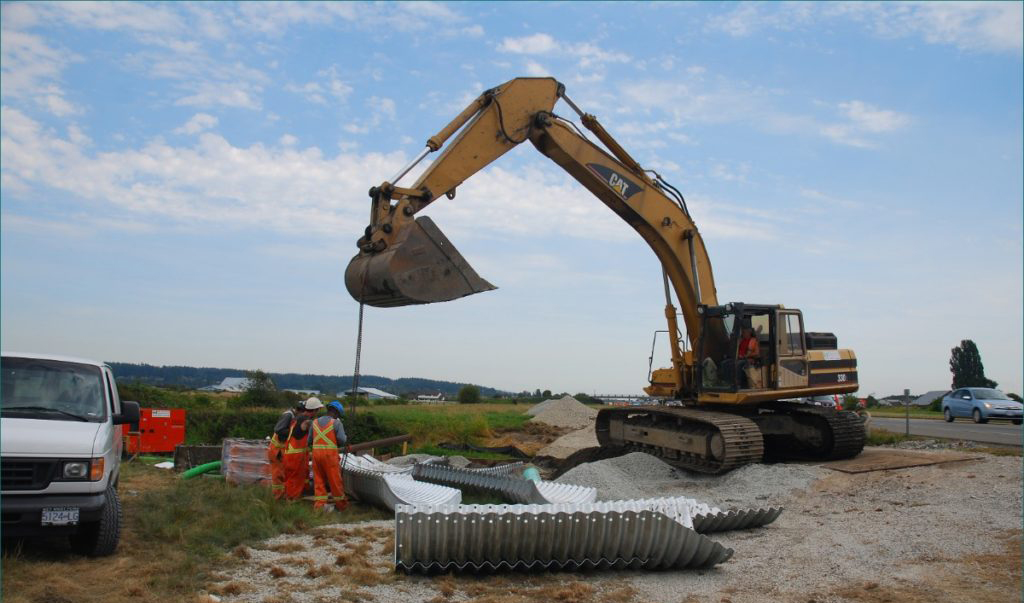

The new Carrier pipe can be installed as one solid piece pulled in place or in sections and pushed into place. For smaller diameters, HDPE pipe is often used, but for larger diameters, either CSP (Corrugated Steel Pipes) or GRP pipe (Glass Reinforced Plastic) are used. PW Trenchless also uses rectangular GRP pipe from time to time, as was the case to line a large box culvert storm sewer in the City of Richmond.

Some complex projects have internal bends and elevation changes that can only be completed using GRP pipe. These GRP pipes can be moulded into complex shapes to accommodate any variety of bends.

Regardless of the method, sliplining is considerably less intrusive than excavating, removing and replacing existing pipes. Many large culverts are under roadways and highways and there never is a good time to close a major arterial roadways to install pipe via open cut methods.

Projects with Sliplining

Construction of Douglas Road Main No.1 Sliplining Project

The scope of work encompassed the rehabilitation of approximately 380m of 36" (914mm) diameter steel water pipeline for the Douglas Rd. Main No. 1 section, from Delta Ave. to Beta Ave. in Burnaby BC. The selected method of rehabilitation was …

See Project

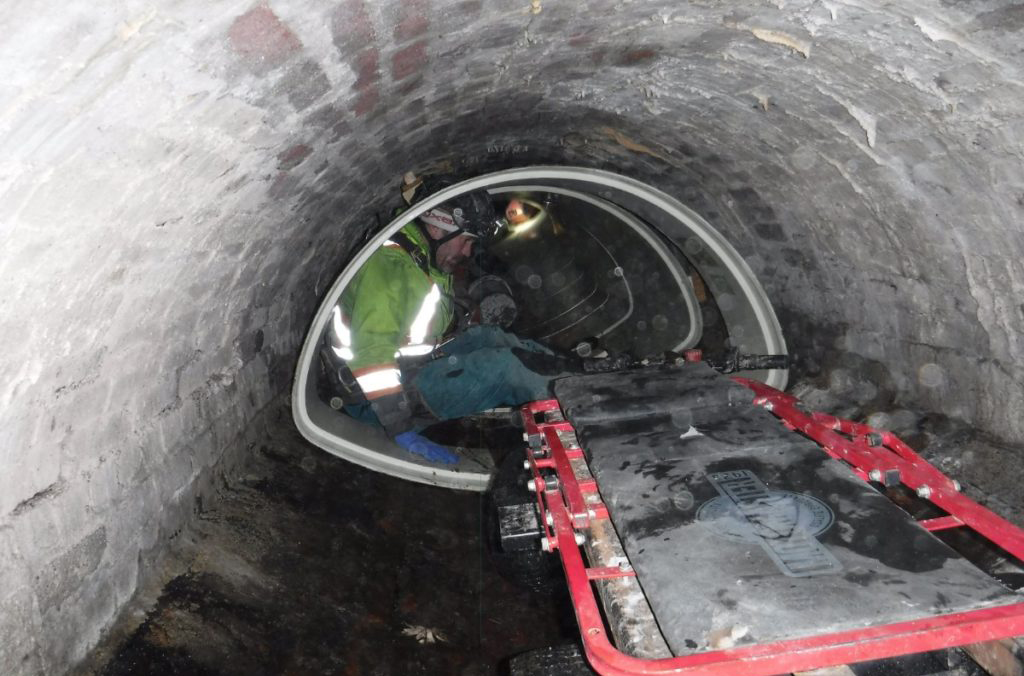

Sewer Rehab Victoria

PW Trenchless and the City of Victoria engaged in the Rehabilitation of an almost 100 year old Sewer. Victorian era Victoria B.C. quickly outgrew it's existing cemetery by the early 1870's. The City purchased 12 acres from Robert Burnaby Ross Bay …

See Project

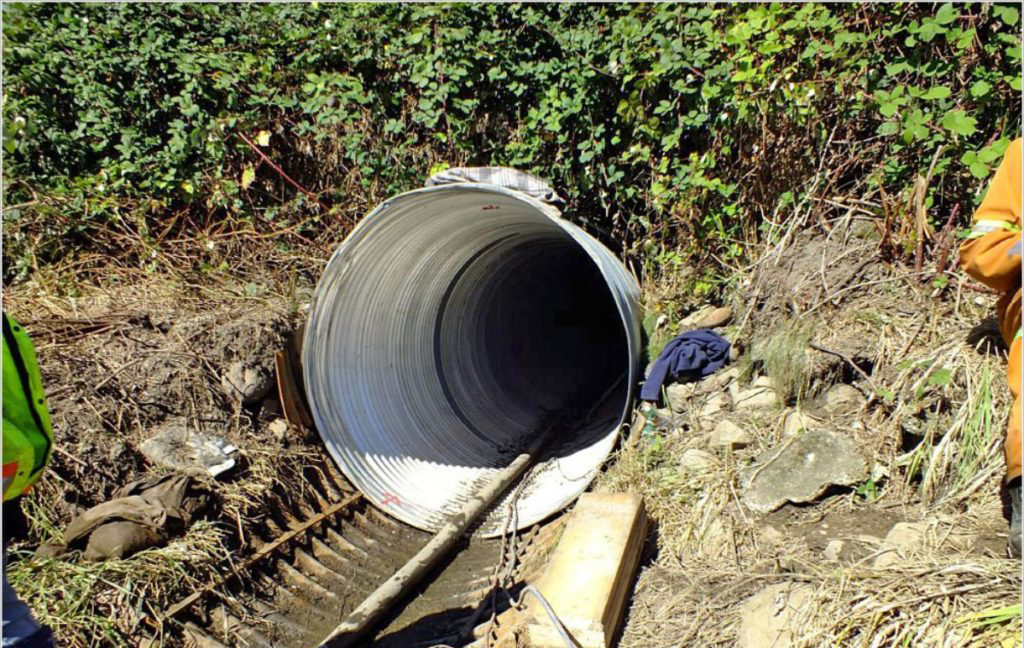

HWY 1 Culvert Slipline at Chilliwack Airport

While rehabilitating the Trans Canada Airport Culvert, it was decided to employ a full Sliplining method in order to repair the second culvert. New culvert pipes that are slightly smaller than the existing culvert were delivered to the south end …

See Project
