The fall and winter of 2019/2020 was again a time for PW Trenchless to completely measure and prepare 2 sections of pipe within the Radium Hot Springs park area for the installation of Glass Reinforced Plastic pipes inside two Culverts in Radium Hot Springs just North of the Hot Pools. Both had roadways on top of them and the crew had to install the pipe sections in the winter when the flows of the Sinclair Creek are at the lowest.

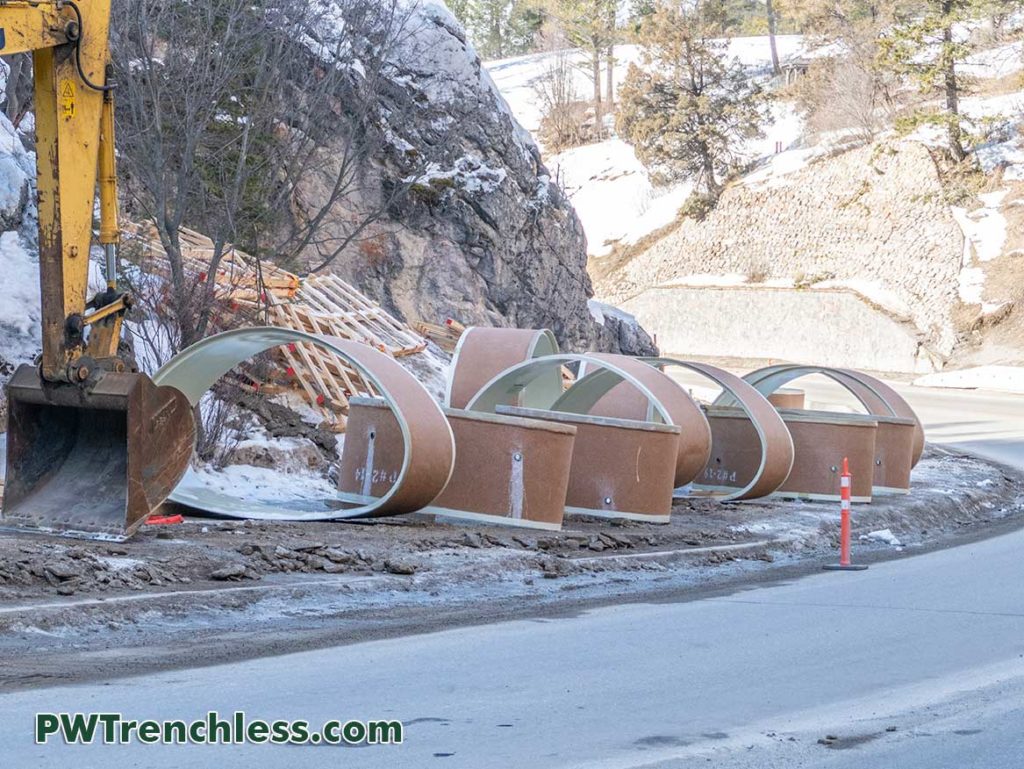

The longer of the two sections was just North of the Radium Hot Springs pools and the other section was a few kilometres up the Banff-Windermere Highway. The project uses Glass Reinforced Plastic (GRP), supplied by Chaneline International. GRP is a precast segmental liner which allows for, after a meticulous measuring process, each section of GRP to be hand formed and specifically designed for a particular location in the host pipe before being shipped to site.

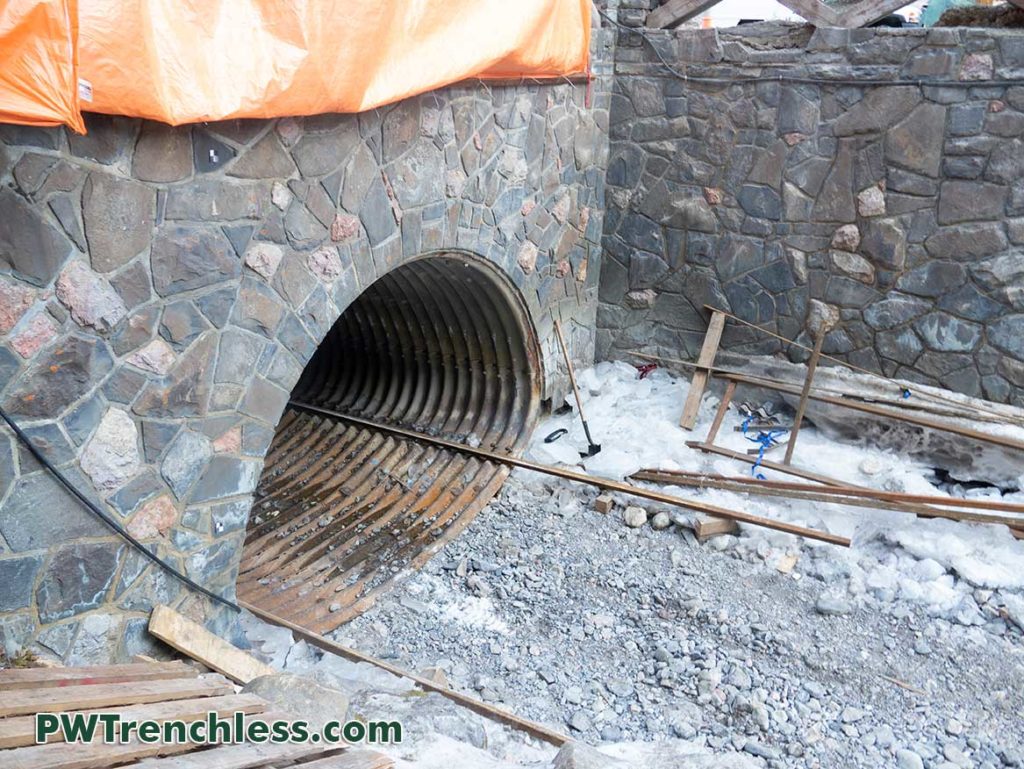

This meticulous measuring was accomplished by a team of PW Trenchless technicians who spent many days inside of the host pipe made of deteriorated Corrugated Steel. When the pipe was delivered to the site, PW Trenchless Construction had already set up the By-pass pump systems and cleaned out the host pipe to make way for the new sections of pipe.

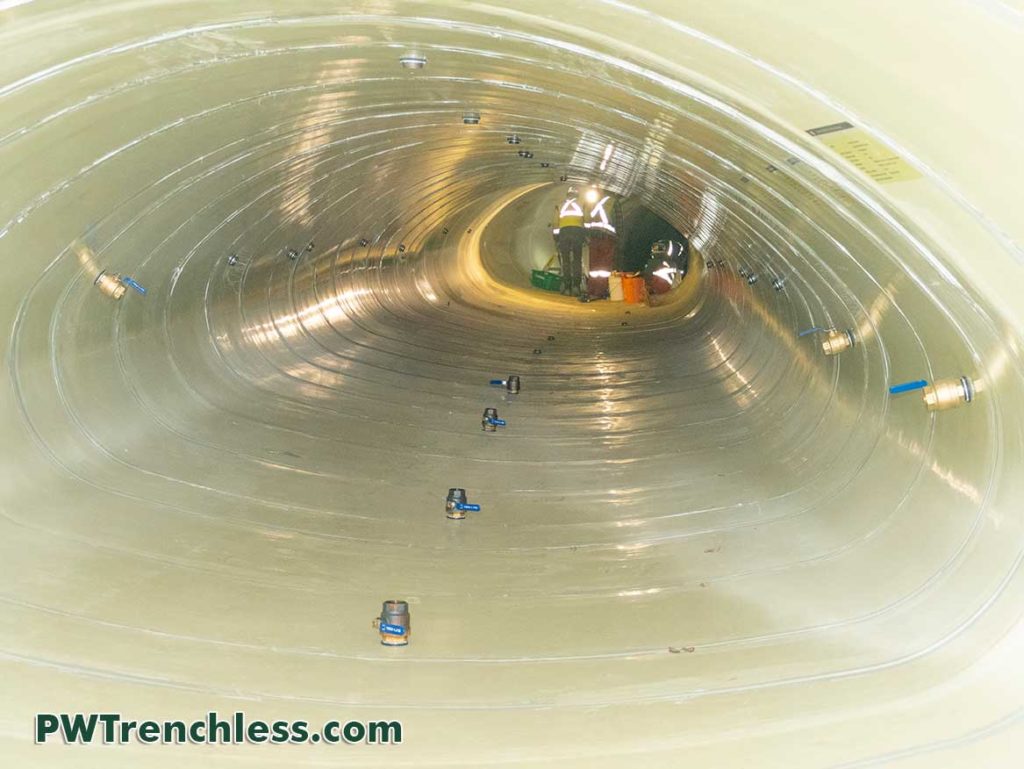

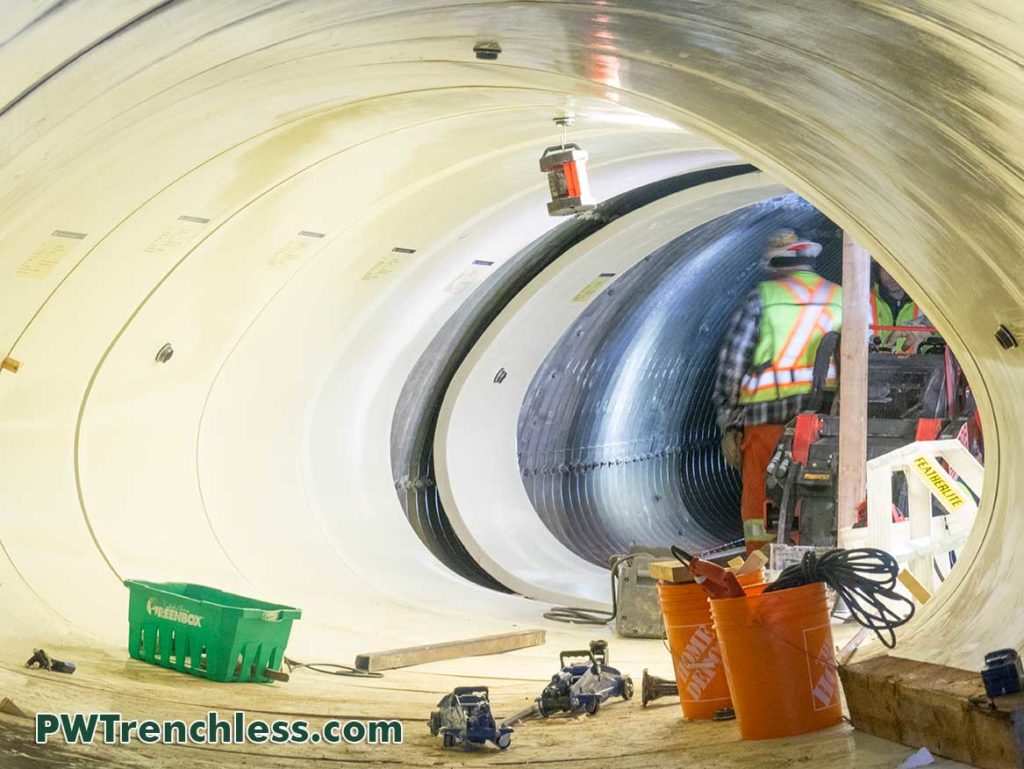

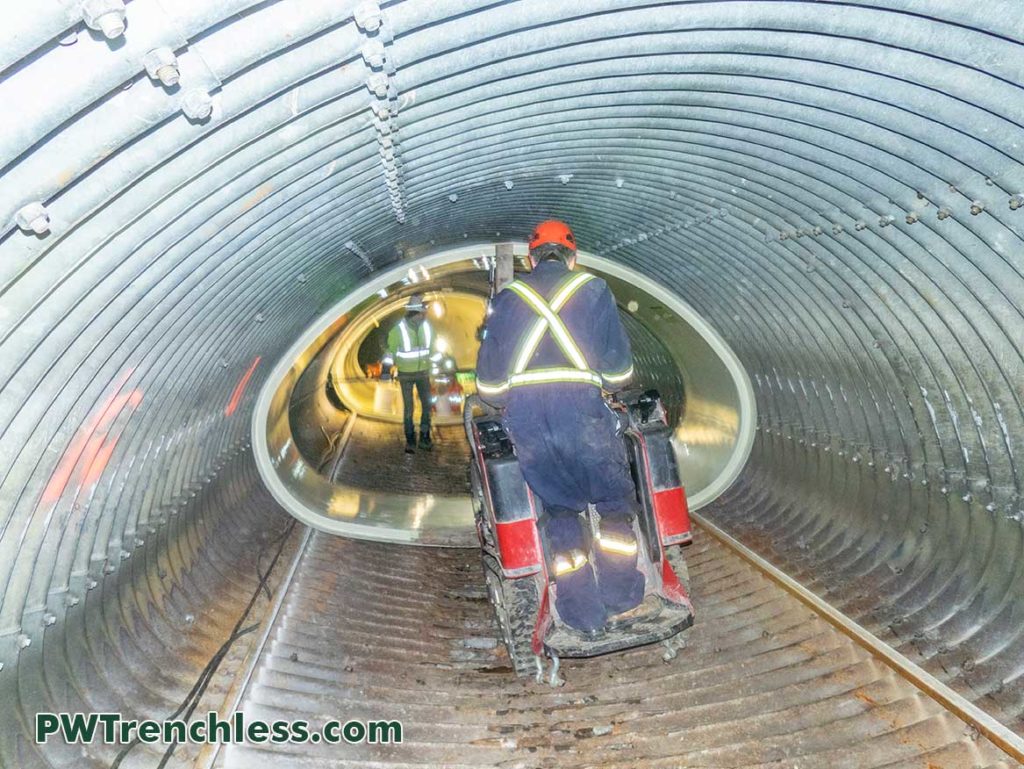

The pipes were installed on steel channels welded to the bottom sides of the Host pipe and once all the pipes were installed, concrete was pumped into the void between the host pipe and the outside of the new Glass Reinforced Plastic. The outside of the Glass Reinforced Plastic is coated with a rough material to further enhance the bond between the new concrete filling the void for further strength of the completed pipe structure.
