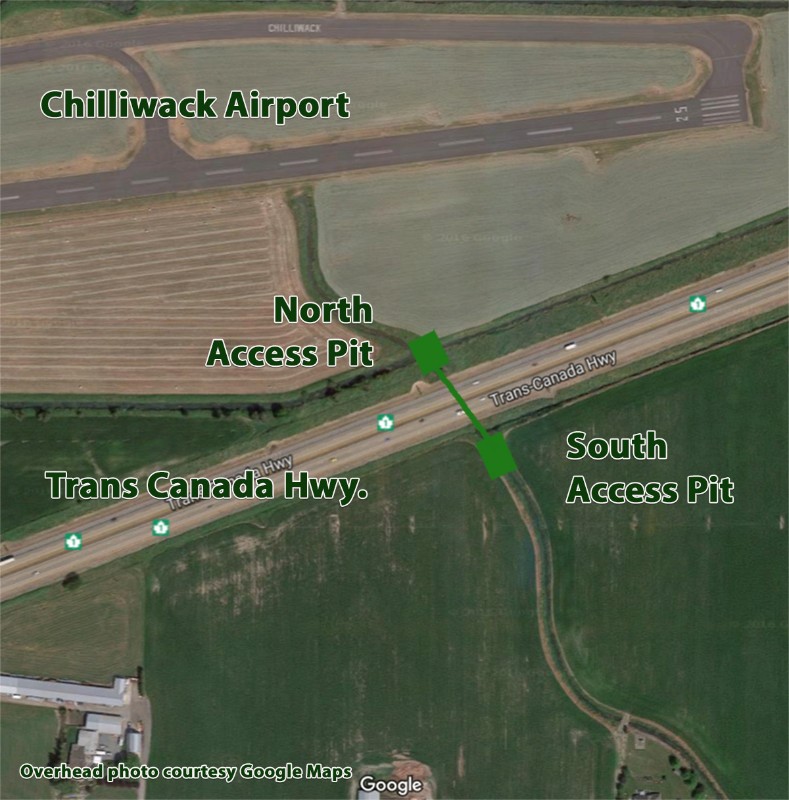

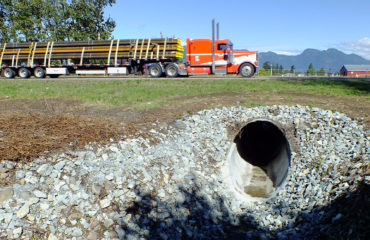

The Highways Department had two culverts in need of rehabilitation near the Chilliwack Airport. Both cross under the Highway One Freeway and replacing via Open Cut techniques was not a practical solution.

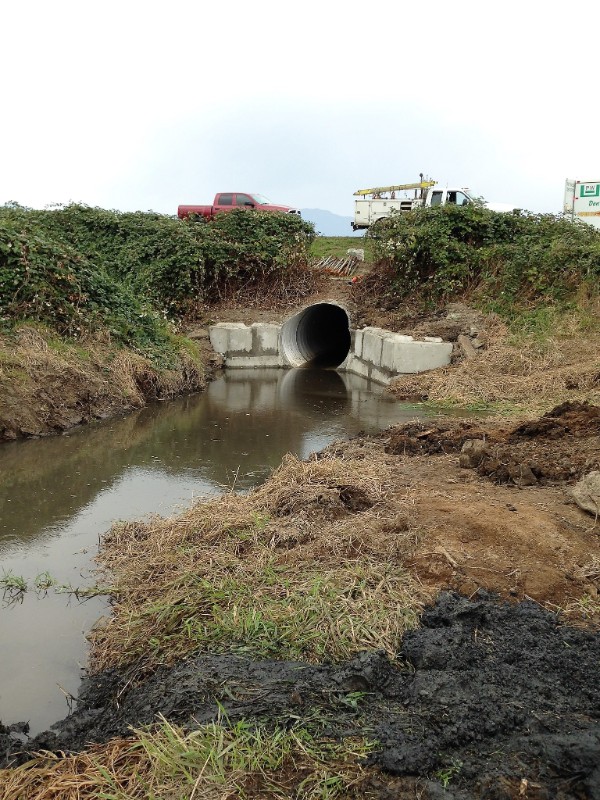

The first culvert to be repaired was located at Upper Prairie Road and the Highway One. The Culvert was only a few metres to the east of the roadway. This Culvert was cleaned and inspected and a repair was decided as opposed to complete Sliplining. The failures were apparent at the bottom 1/3 of the pipe and, with total failure, the top 2/3’s of a culvert can drop and be catastrophic for the Highway.

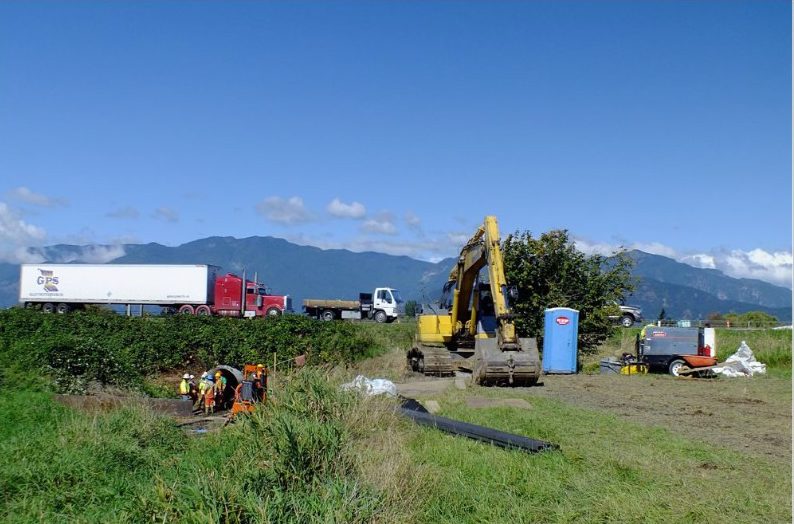

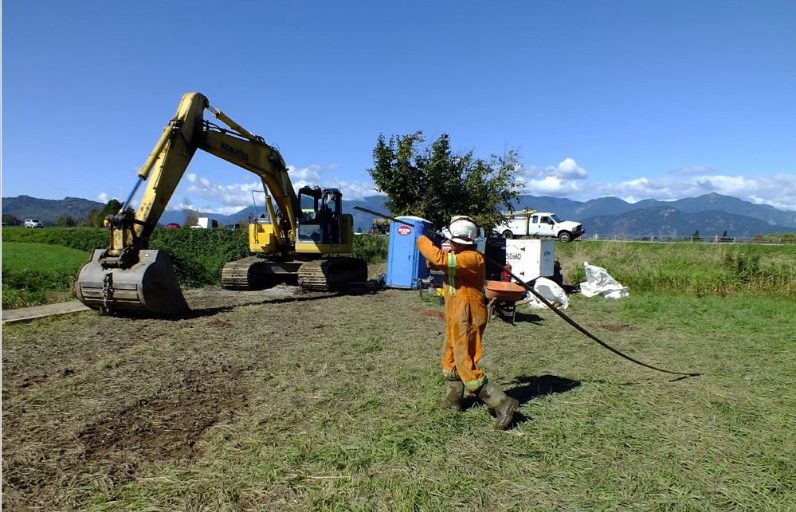

The decision to use this method allowed for a smaller cofferdam, as full lengths of new culvert pipe were not needed to be lined up and inserted into the existing culvert. The water was diverted using a pump system.

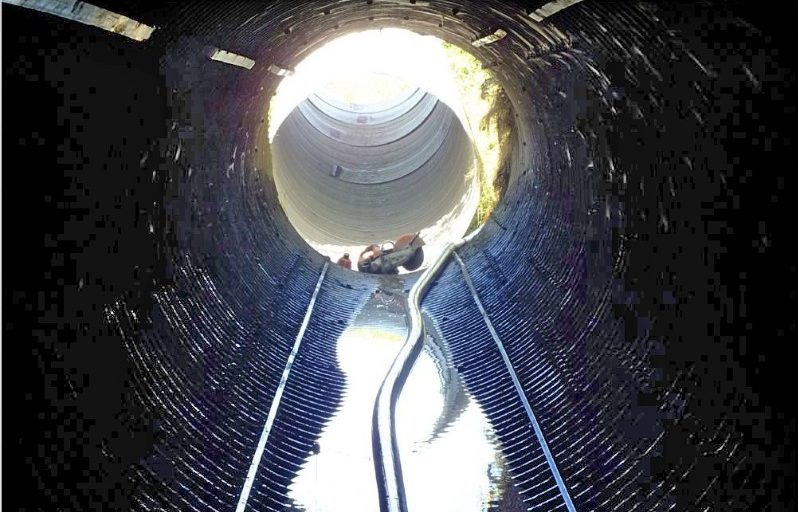

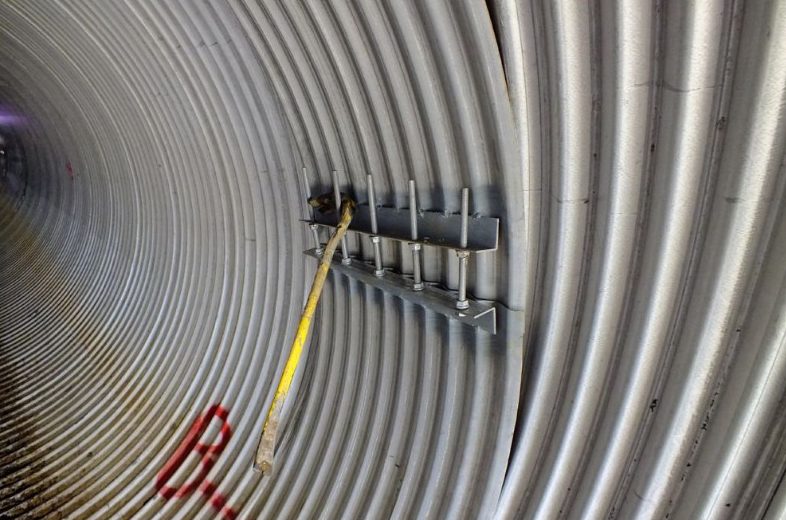

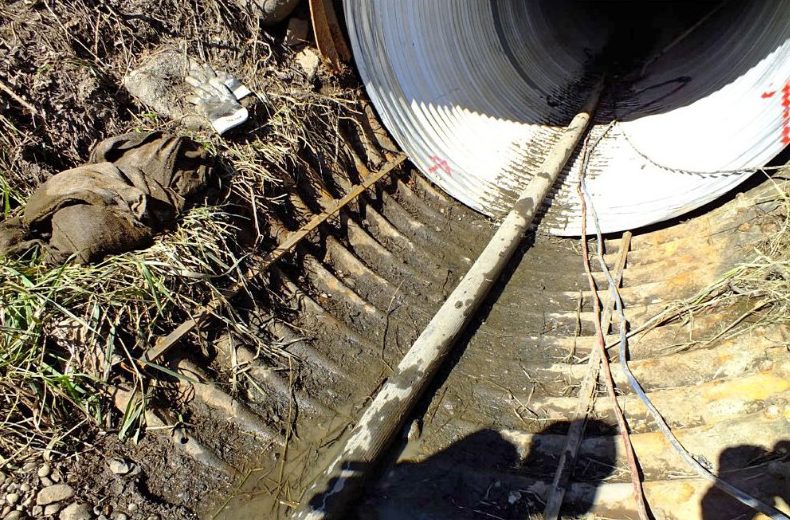

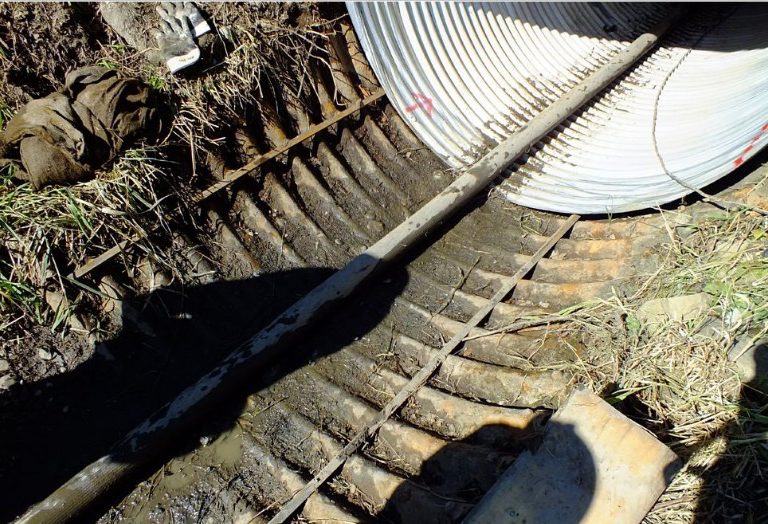

The repair involved welding in place a bed of structural steel rebar and then encase it in concrete. This formed a new “pipe” in the bottom of the existing culvert and was done quickly, and again, with almost no excavation. The lack of excavation around creeks and waterways is very important to preserving a healthy stock of fish, as they need access to the creeks running through the culverts.
The Highways Department had two culverts in need of rehabilitation near the Chilliwack Airport. Both cross under the Highway One Freeway and replacing via Open Cut techniques was not a practical solution. The first culvert to be repaired was located at …See Project

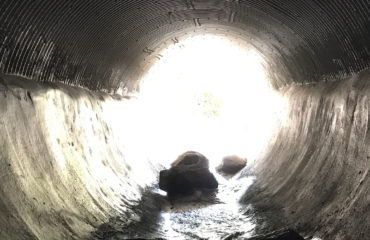

Eagle Creek Culvert in West Vancouver was experiencing severe failure along culvert invert which could potentially cause above ground failure. The project was determined to be high priority due to close proximity residential properties that had been constructed on the …See Project
