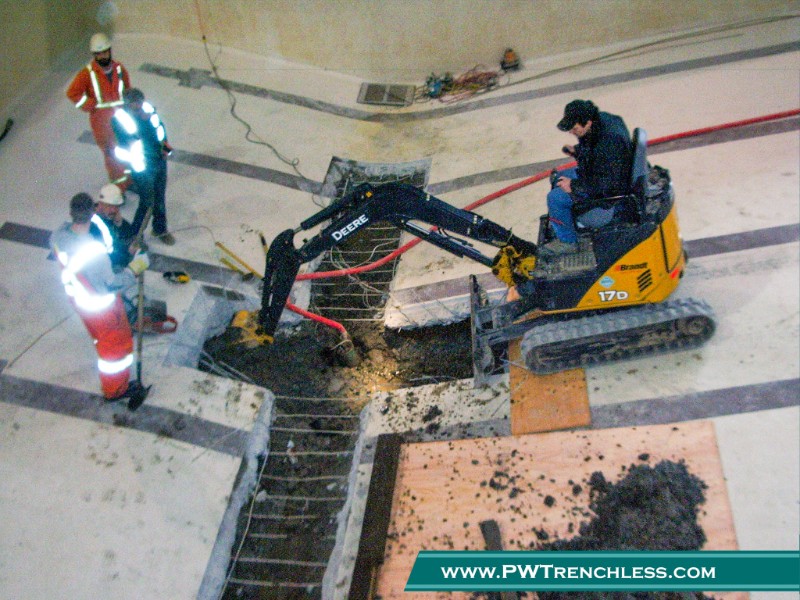

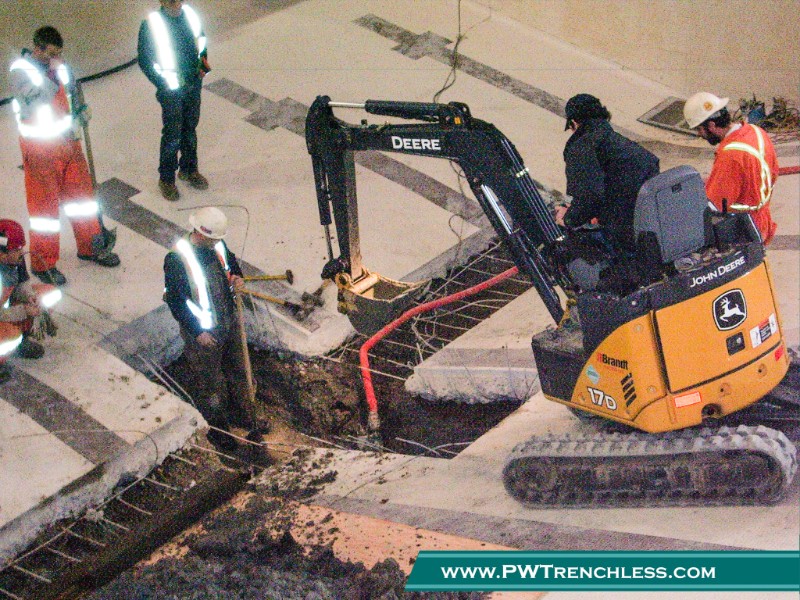

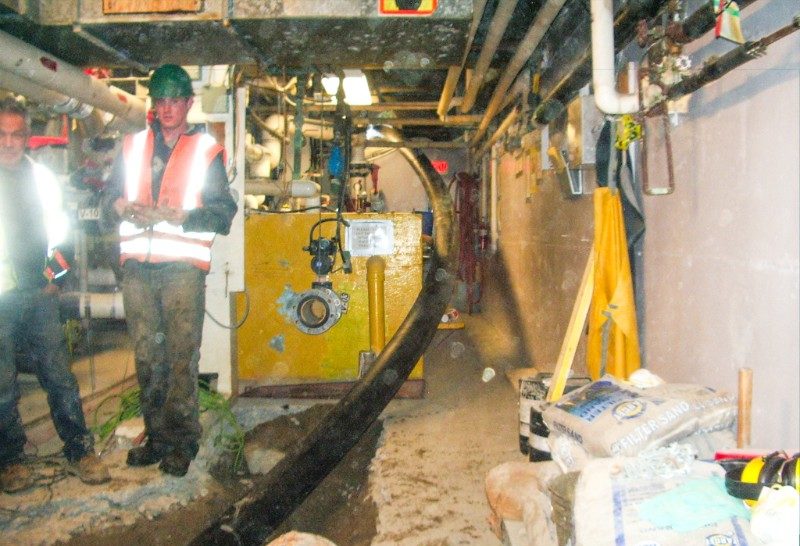

A large public pool facility in North Vancouver noticed that its main pool drain line had been corroded because of chlorine and needed replacement. As other methods were not an option, PWT brought its outdoor equipment inside to complete the burst. Rather than removing the entire floor of the pool, a small excavation of 2m X 2m was made at the drain, and a hole was cut in the wall of the pump room, allowing a new HDPE pipe to be installed .

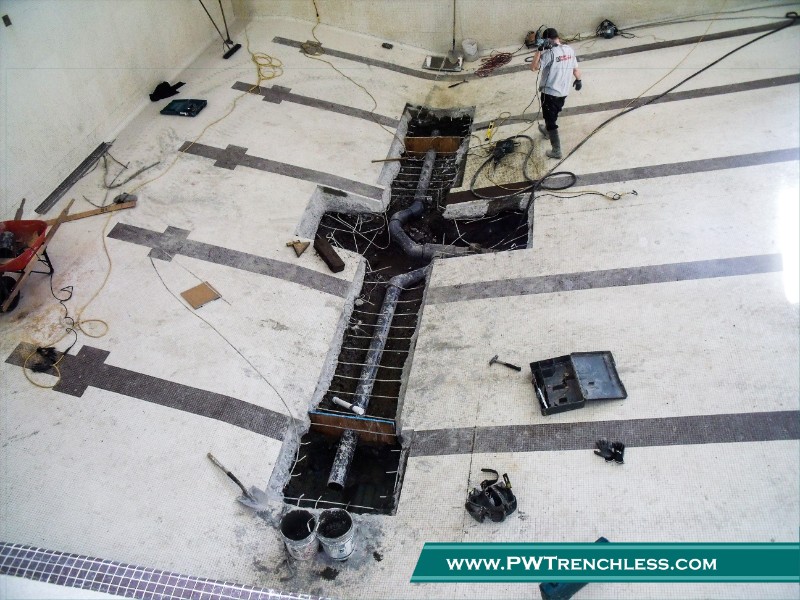

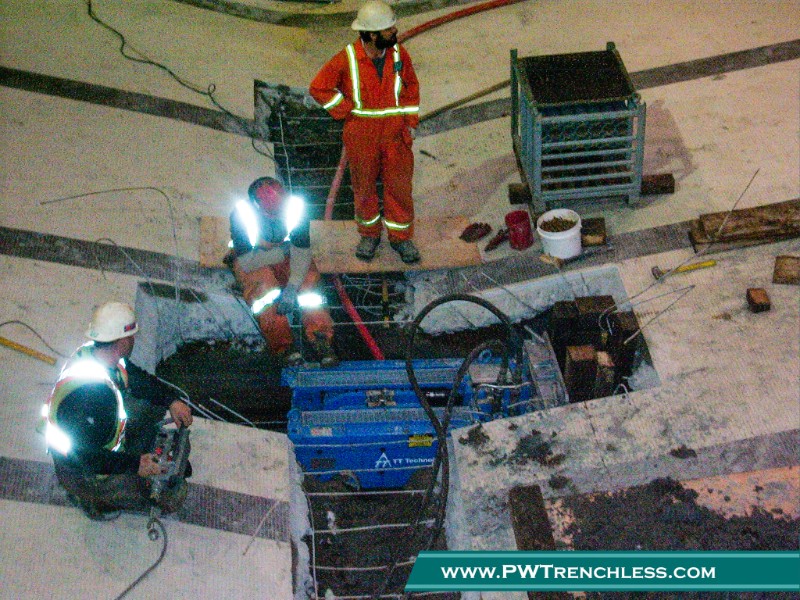

The bursting head was attached to the new HDPE pipe and rods were attached to the pulling head. It was a simple matter to pull the new pipe in, and in the process “burst” the existing failed pipe. The drain needed to be replaced, and the pit to be filled with concrete and tile was only a few square meters in size. The entire floor of the pool would have needed replacing if conventional construction had been used.
