In early 2017, The City of Maple Ridge put out to tender a contract for an “Experimental” pipe burst in a fairly sensitive area of Maple Ridge and through part of Kanaka Creek Park. The host pipe was 275mm (15 inch) and it was to be upsized to 850 mm (34 inch).

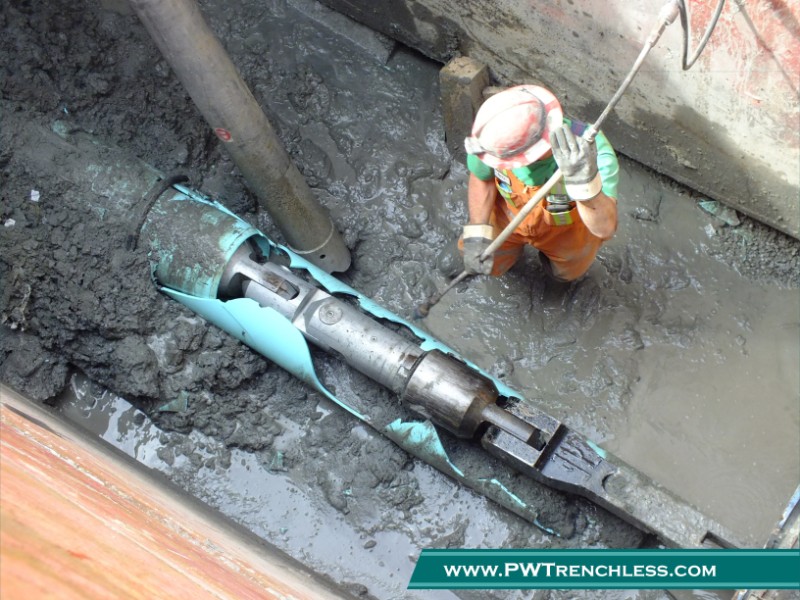

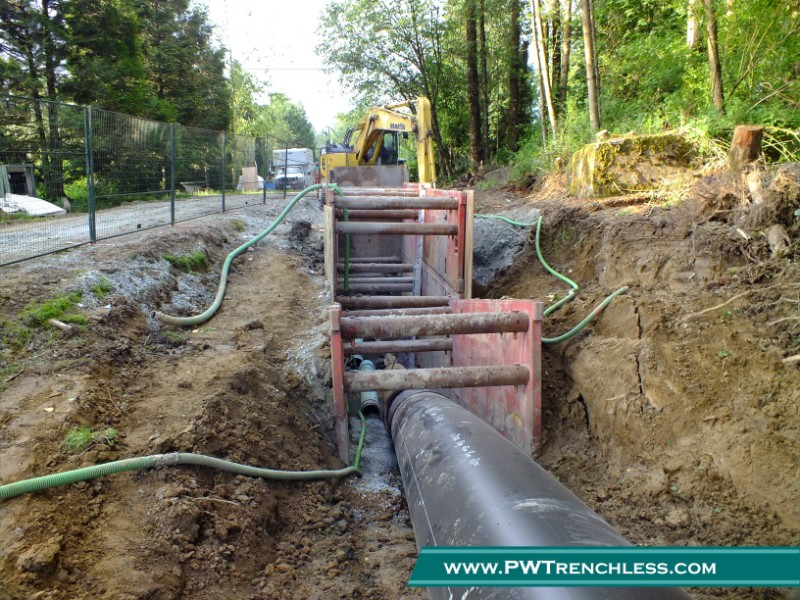

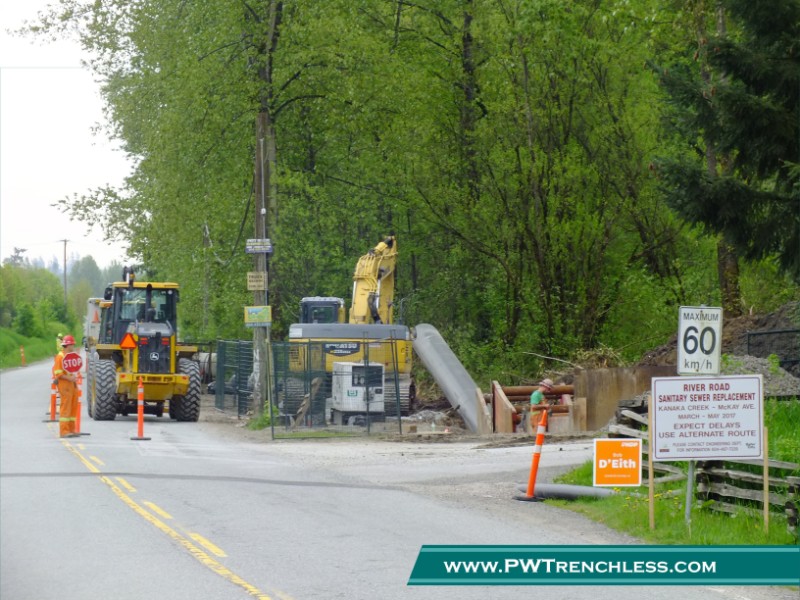

By the Spring of 2017, PW Trenchless Construction started work on replacing a 375mm PVC sewer main, via Pipe Bursting, that ran through part of Kanaka Creek Park in the City of Maple Ridge. Upon consultation with the City and PW Trenchless, arborists marked out which trees would be removed to allow for the Entrance and Exit pits. Although the existing 375mm PVC pipe was not that old, it was installed via open cut methods and the trees had grown very large over the years. Replacing the pipe to a larger diameter via open cut methods would have been disastrous to the existing green space and, due to the depth, it required a large amount of material to be removed from the site.

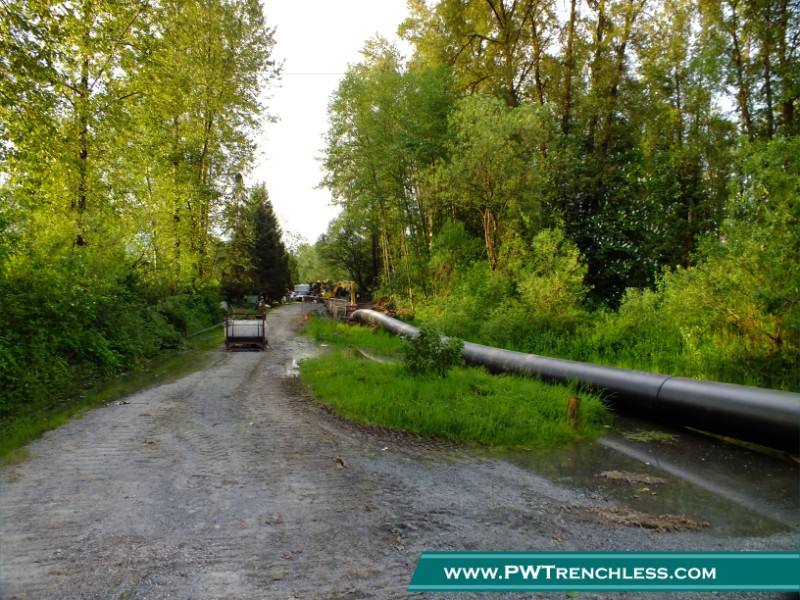

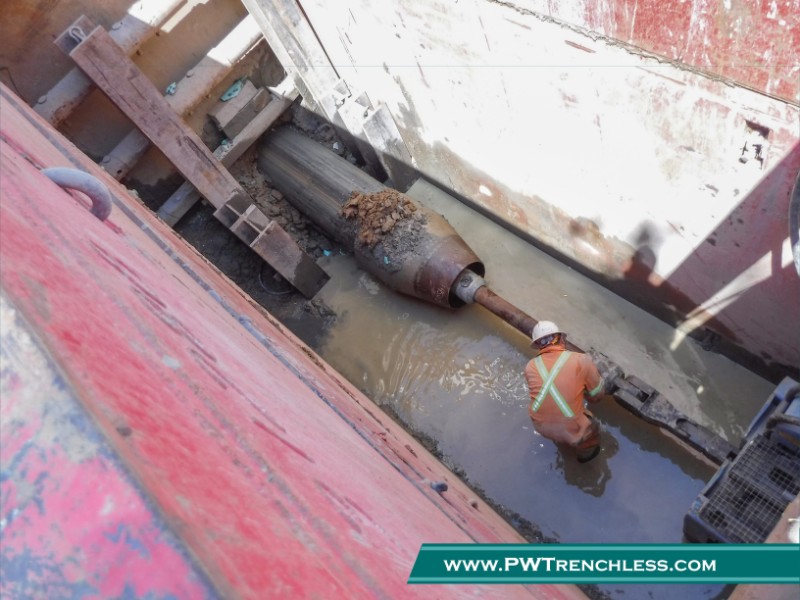

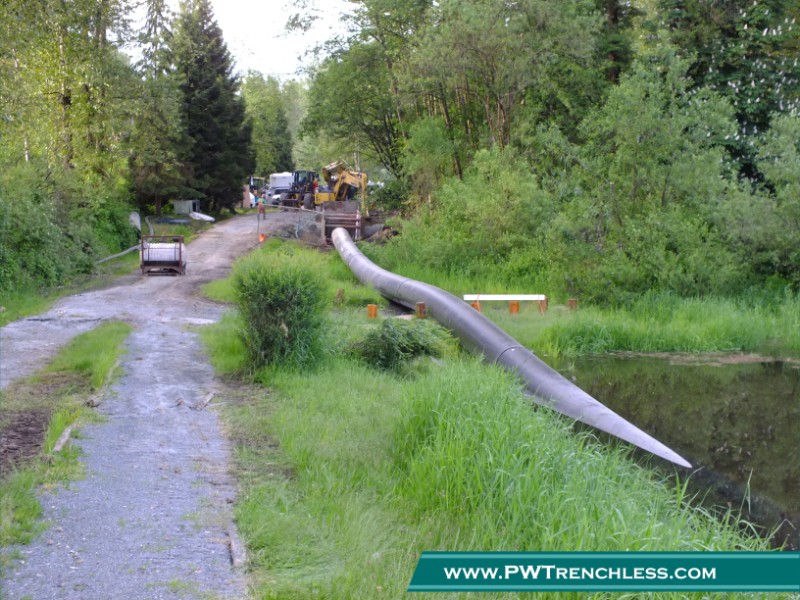

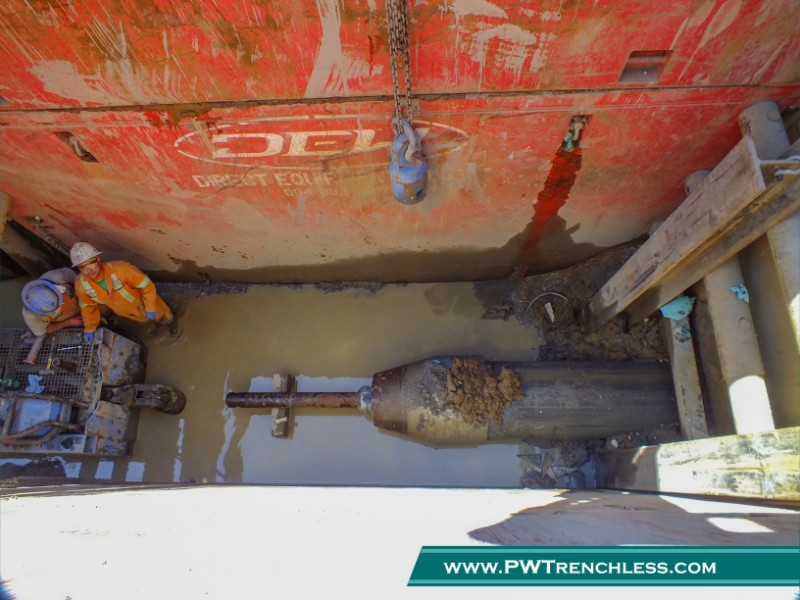

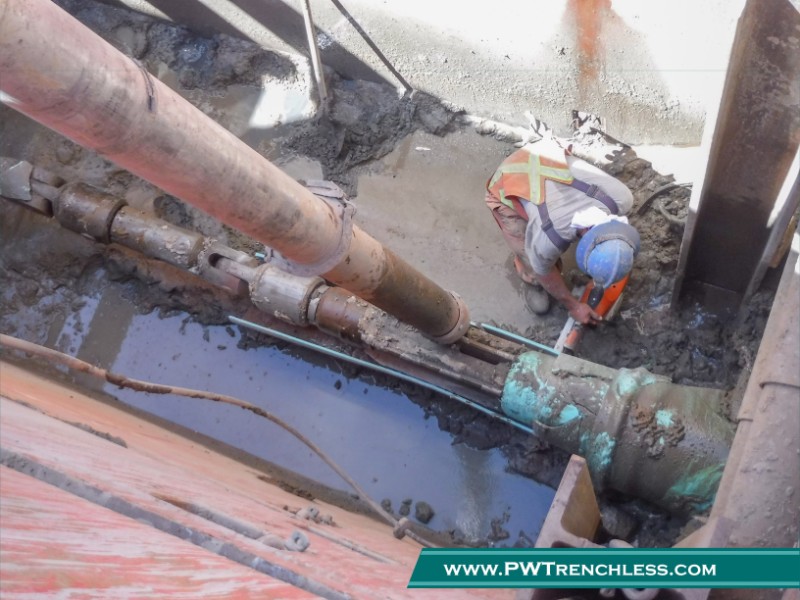

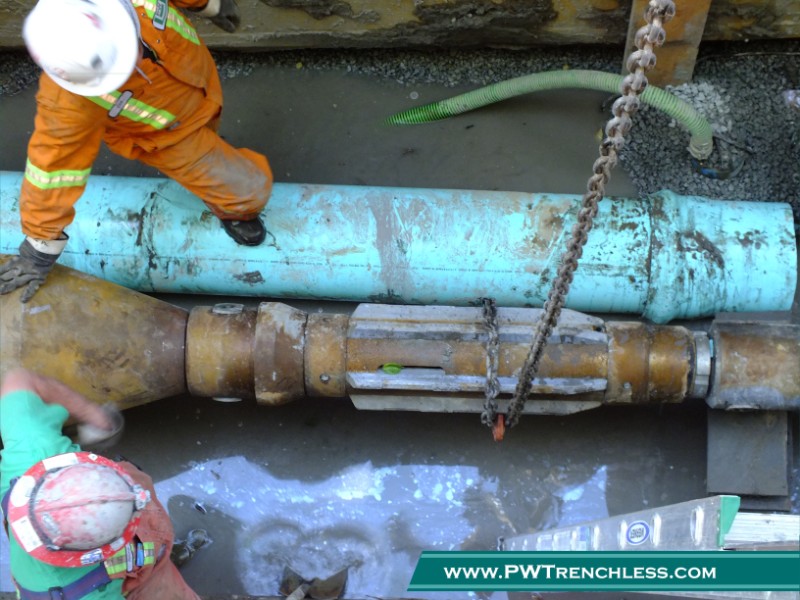

The Installed pipe was in two sizes; a minimum inside diameter of at least 600mm, and the two most western sections needed to be at least 750mm wide. This required two bursts, where the upsize from 375mm PVC to 750mm HDPE pipe had to be installed via Pipe Bursting. The longest burst was 118m and the shortest was 97m.
The spring of 2017 brought very heavy rainfall, so the water level was extremely high on the Kanaka Creek as it met the Fraser River less than 100m away from the westernmost and lowest manhole “TS 15”. The upper sections were installed first, leaving the bursts closer to Kanaka Creek for late July while we waited for lower water levels. The project was completed over a 5-month period.
We are proud that this project received an Honourable Mention in the No Dig Conference of 2018.
