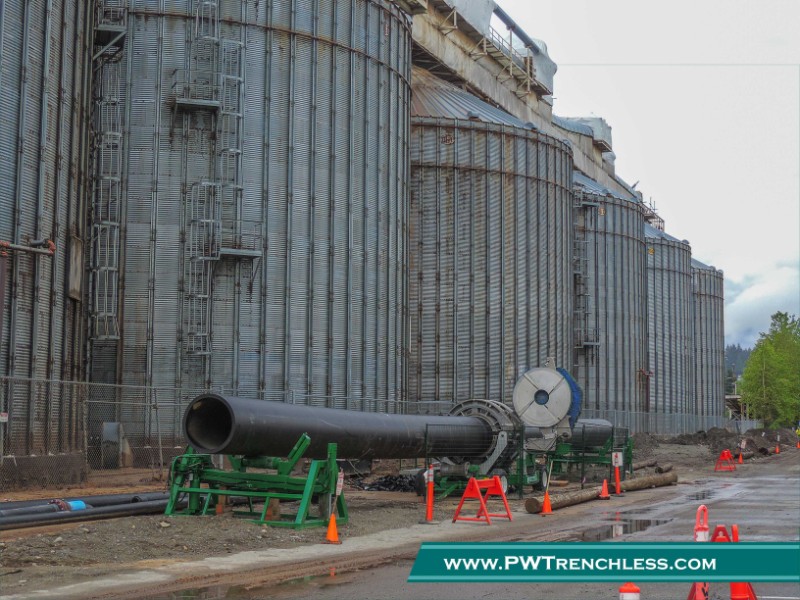

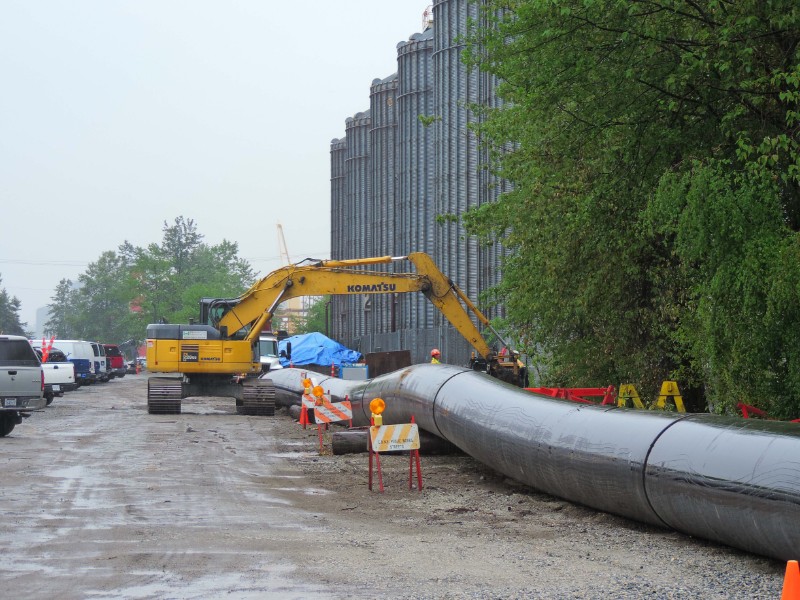

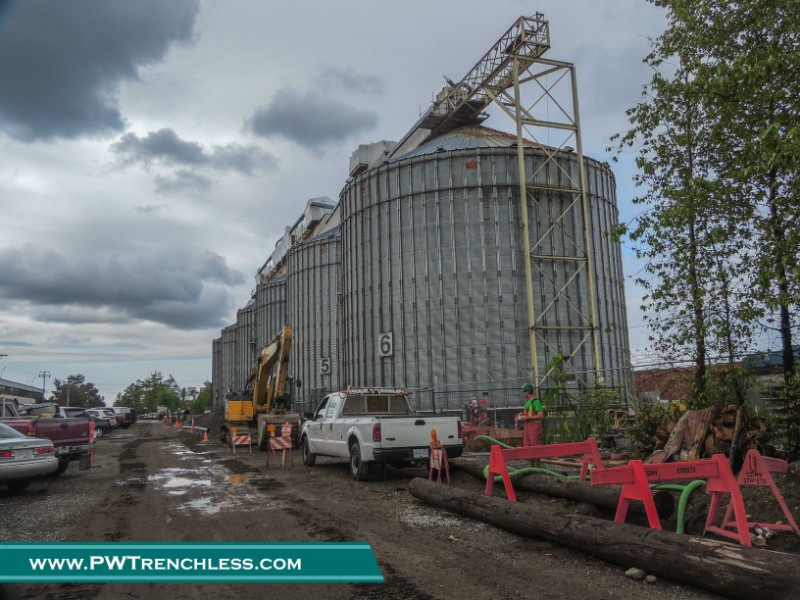

The District of North Vancouver had a 900mm CSP storm sewer that had been failing for 10 years. Numerous efforts to clean the pipe had resulted in the bedding, surrounding the pipe, migrating into the pipe when cleaning efforts were attempted. The pipe is a critical part of the storm sewer system. The path of the existing pipe passes through polluted ground and is very close to 5 large silos built on concrete slabs. All of these conditions meant that conventional reconstruction was very difficult, and not reconstructing the pipe exposed the city to lawsuits from flooding.

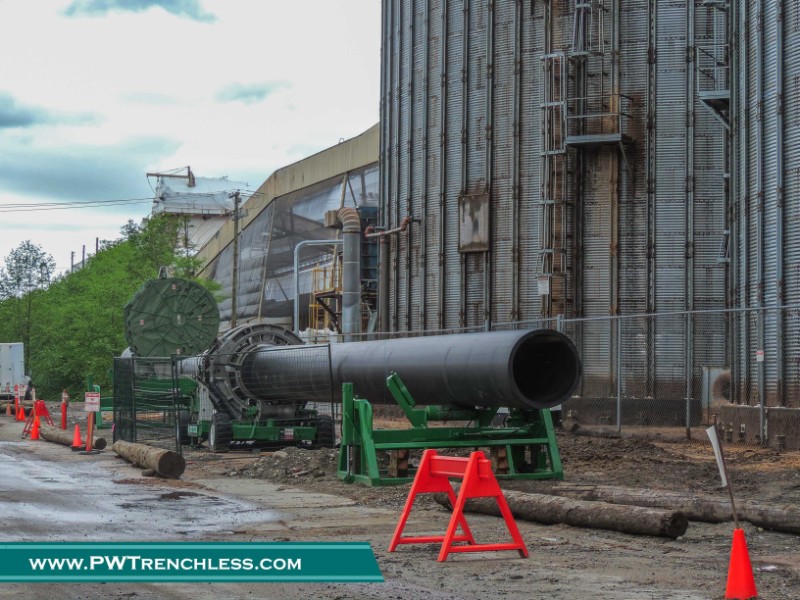

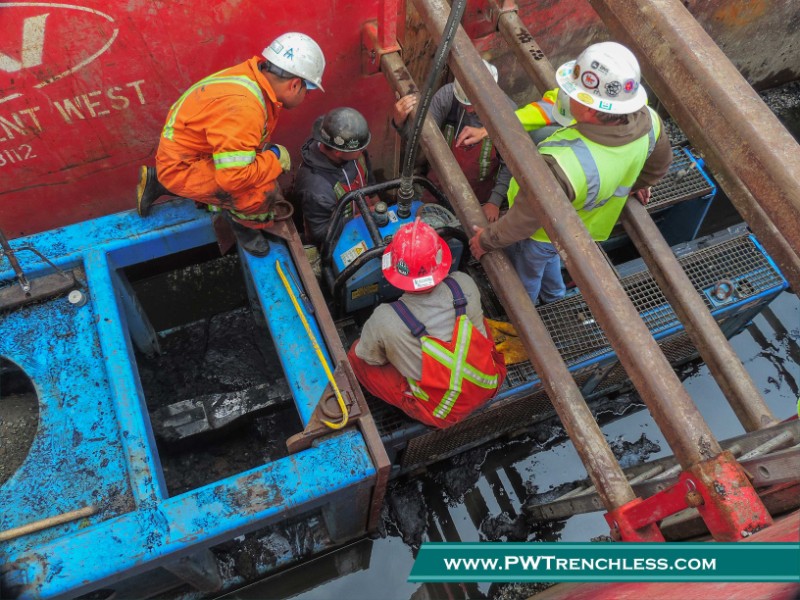

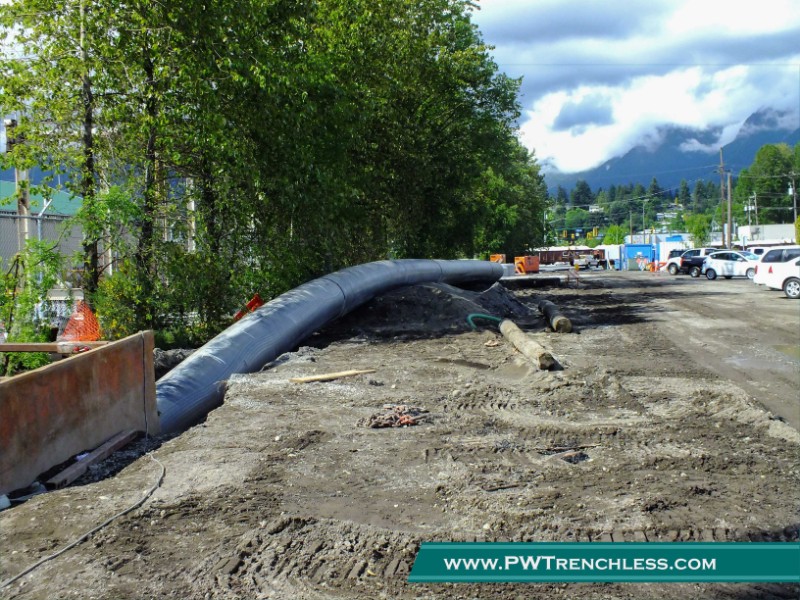

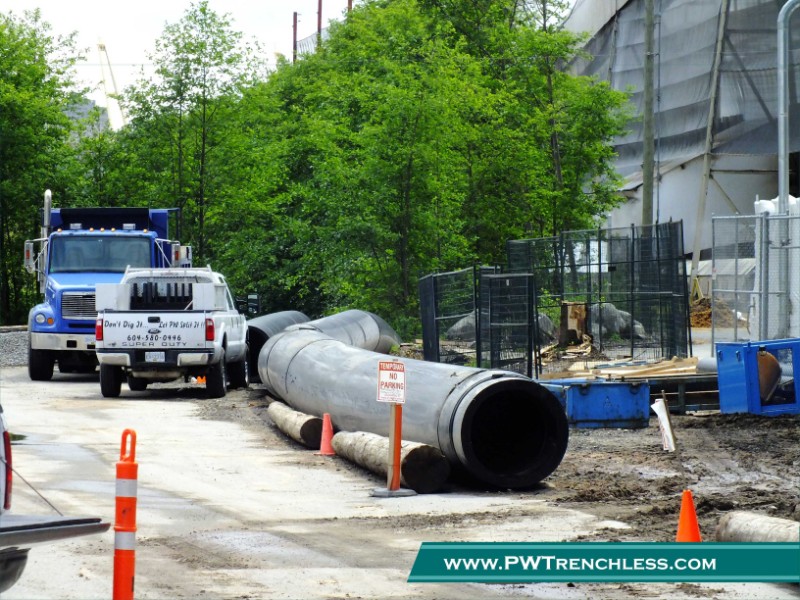

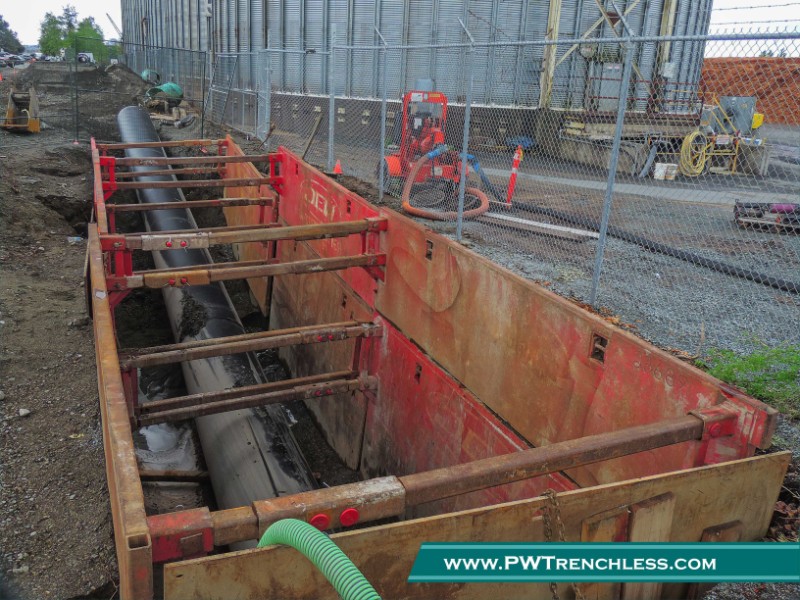

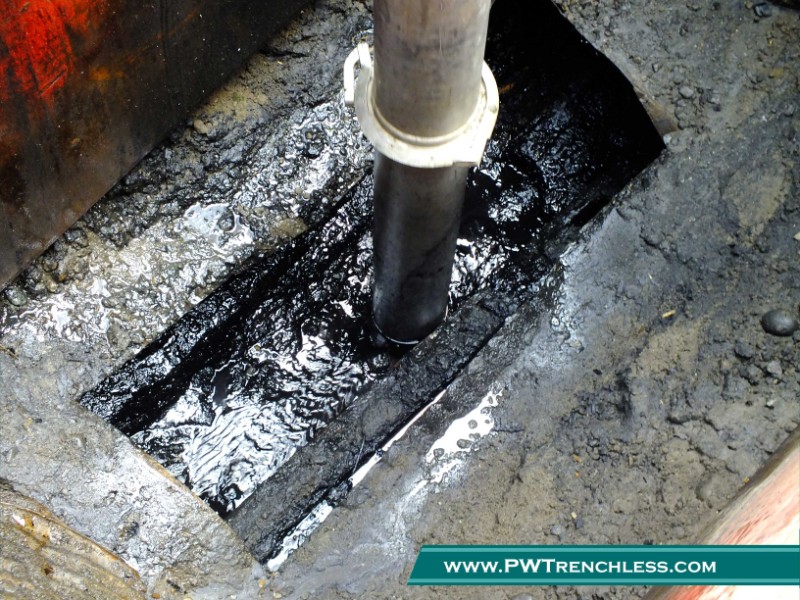

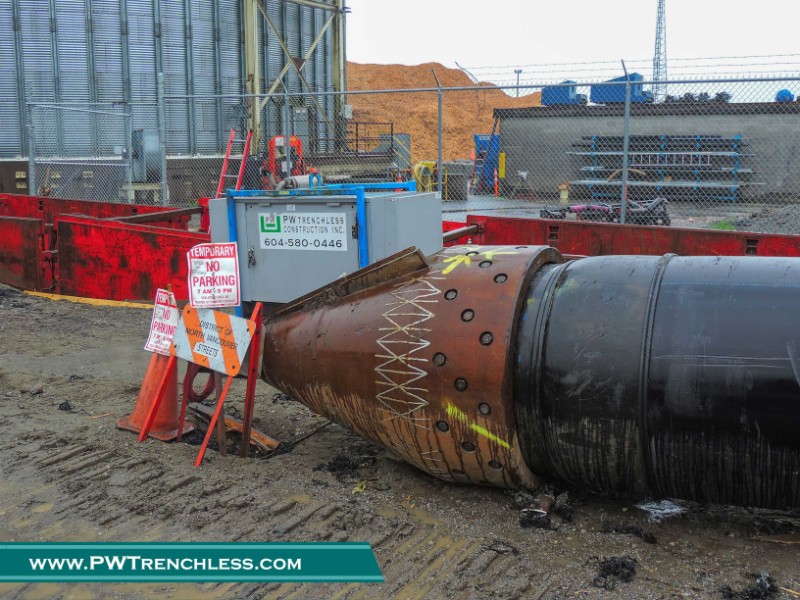

It was decided to reconstruct the pipe using some type of trenchless, and a Request for Proposals was put out for tender. PWT submitted a proposal to Pipe Burst the existing pipe, using a static system, from 900mm CSP to 1050mm HDPE. There were numerous innovative trenchless technologies used to complete this project by the spring of 2014.
In early 2017, The City of Maple Ridge put out to tender a contract for an "Experimental" pipe burst in an environmentally sensitive area of Maple Ridge and through part of Kanaka Creek Park. The host pipe was 375mm (15 …See Project
The District of North Vancouver had a 900mm CSP storm sewer that had been failing for 10 years. Numerous efforts to clean the pipe had resulted in the bedding, surrounding the pipe, migrating into the pipe when cleaning efforts were …See Project

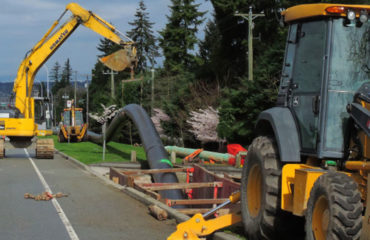

The King George Highway was opened a year after King George's Royal Visit to Canada in 1939. He planted trees alongside the highway in South Surrey and over time these have become part of the community. When the underlying sewer …See Project
