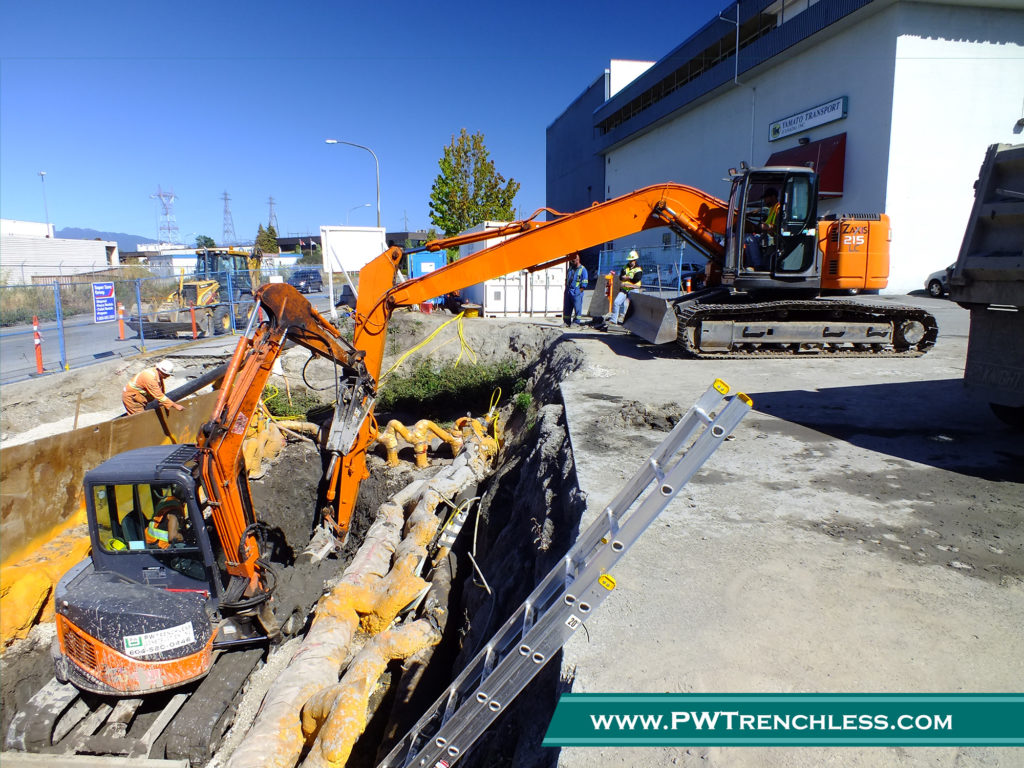

In 2012, a section of trunk sewer pipe that was failing in Richmond needed to be replaced. Because of the close proximity of a block, building conventional well pointing was not advised. We decided to use ground freezing to stabilize the ground to allow the bursting operation to take place. Ground freezing is a common process in New York for building excavation and it is also used in mining and tunnelling. Its use in utility installation is rare. We employed Canadian Dewatering and Wier Jones Engineering to design and install a system of wells, with pipes carrying a recycling coolant driven into the ground using techniques borrowed from the well pointing installation processes.

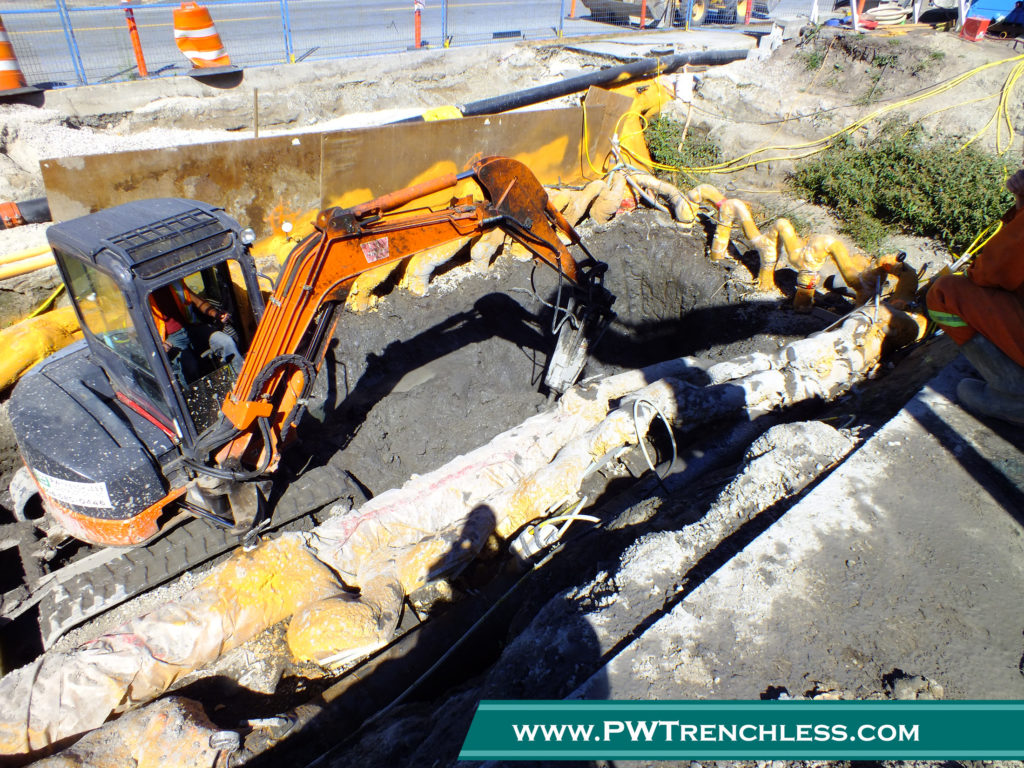

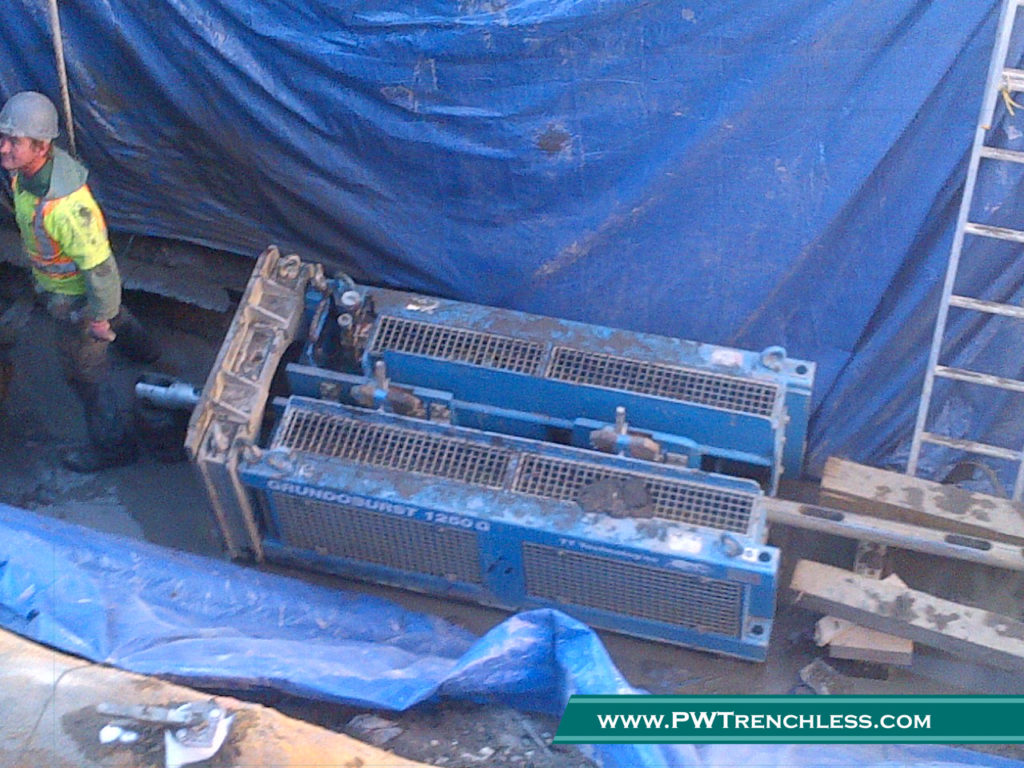

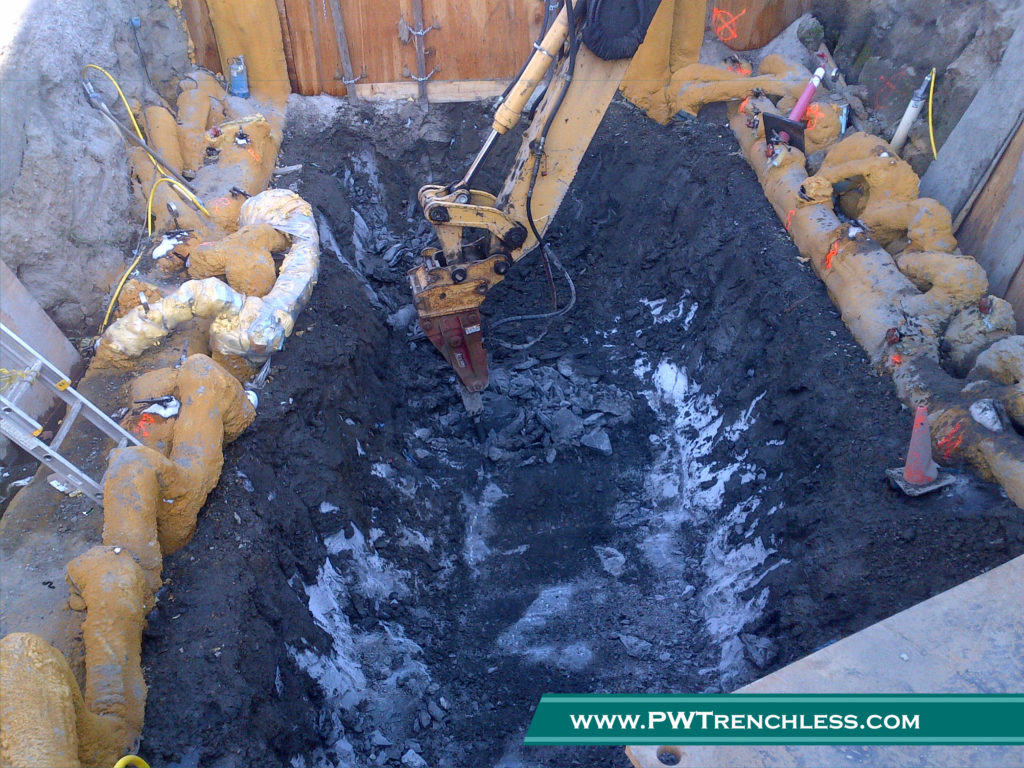

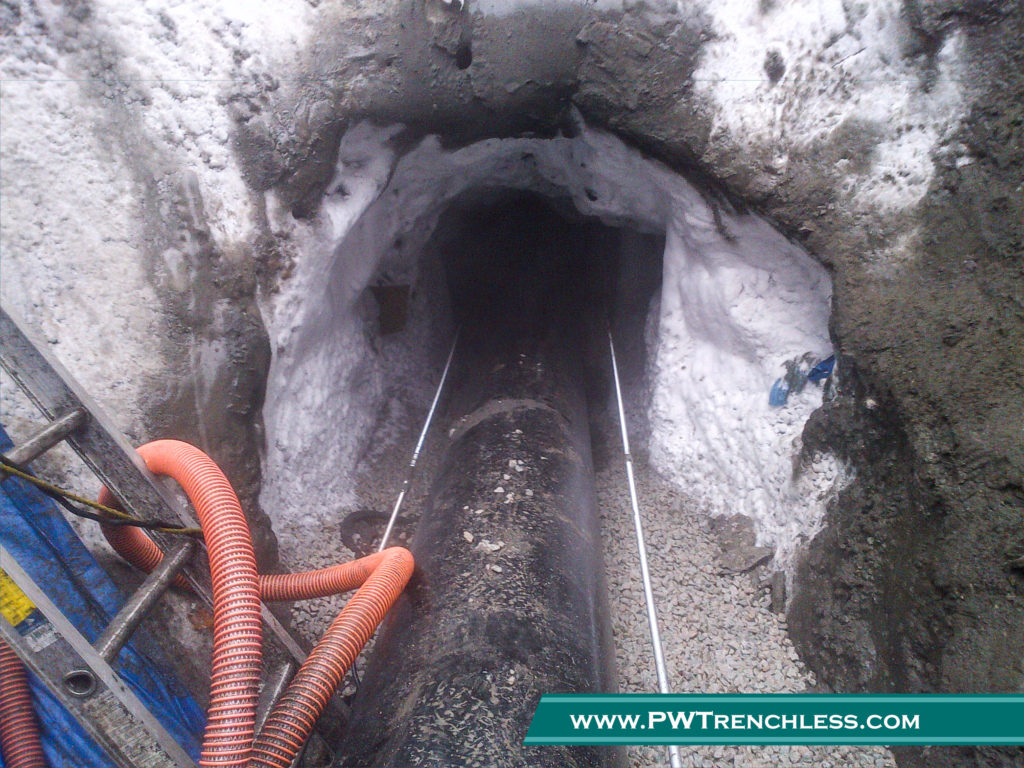

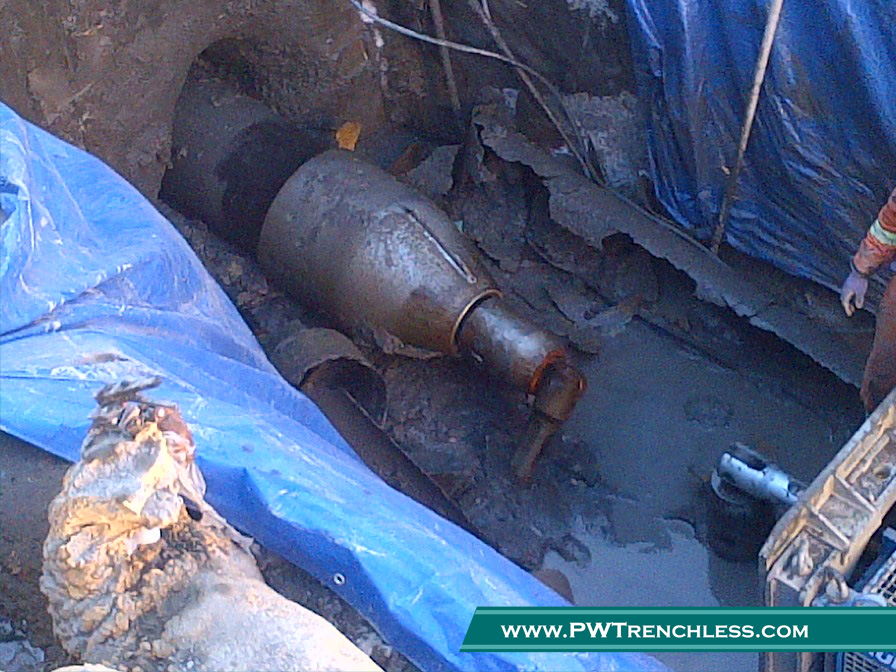

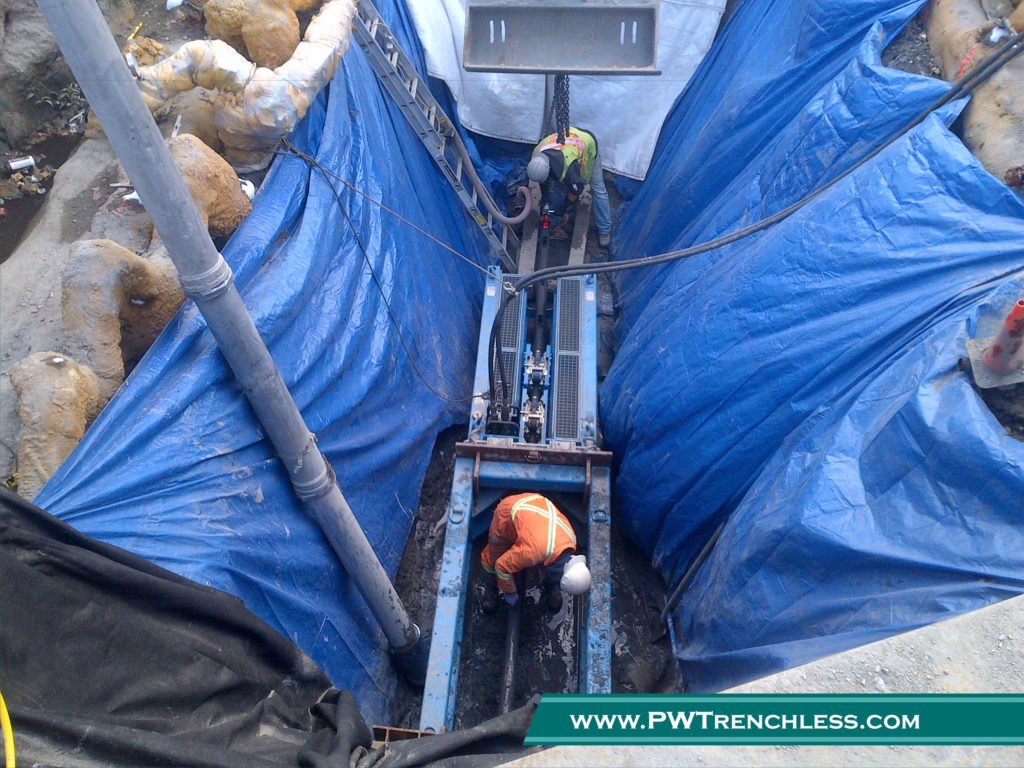

A refrigeration plant was brought on site and coolant was circulated via a closed looping system. This was done around both manholes, one at each end of the pipe needing replacing. The centre of the frozen zone was excavated down to the pipe, and the pipe burst was accomplished with no danger to the surrounding buildings. There was no movement of groundwater, resulting in no building movement or migration of ground pollutants in this industrial area.
For more information, click here.
